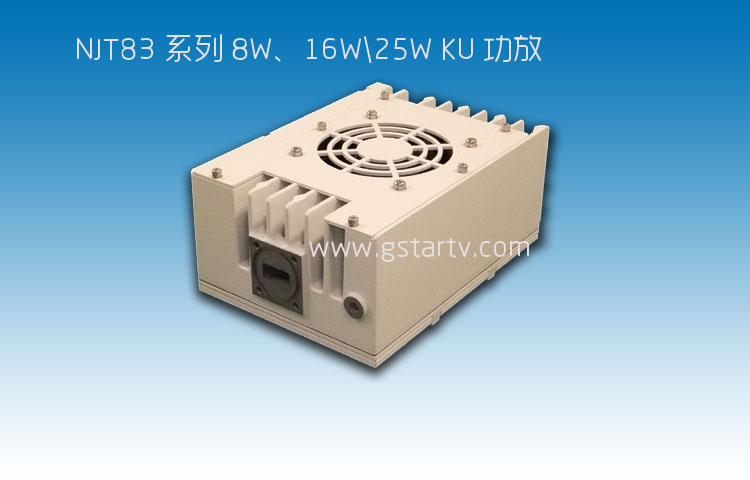

產品名稱：Ku波段16W BUC功率放大器

產品型號：NJT-8319U

產品特點：NJRC公司製造的NJT-8371係列KU波段BUC功率放大器向著小尺寸方向發展，其小功耗以及由耐惡劣環境的材料製造的特點也成為高品質BUC的衡量指標。

       NJRC所有的BUC都可以在-40C至+65C，相對濕度在0-**，降雨等級在60mm/Hour環境下工作。所有的產品在出廠時都經過美國軍事質量控製標準的完全測試，平均故障間隔時間大於8000小時

產品選型：我們可提供JRC品牌 1.5W 、 3W、 4W、 6W 、8W 、 16W、 25W  、40W等KU波段BUC功率放大器全係列產品 歡迎谘詢，選購

Model No.	RF Frequency	Output Power	IF Connector	Power Requirement	M&C Option
NJT8319UN	13.75 to 14.5 GHz	+42 dBm min. @ P1dB (16W)	N-type(50Ω)	Power Supplied from IF Connector	NA
NJT8319UF			F-type(75Ω)
NJT8319UNM			N-type(50Ω)	Power Supplied from MS Connector
NJT8319UFM			F-type(75Ω)
NJT8319UNMA			N-type(50Ω)	Power Supplied by AC/DC PSU PSU Page Link
NJT8319UFMA			F-type(75Ω)
NJT8319UNK			N-type(50Ω)	Power Supplied from IF Connector	FSK Communications M&C
NJT8319UFK			F-type(75Ω)
NJT8319UNMK			N-type(50Ω)	Power Supplied from MS Connector
NJT8319UFMK			F-type(75Ω)
NJT8319UNMKA			N-type(50Ω)	Power Supplied by AC/DC PSU PSU Page Link
NJT8319UFMKA			F-type(75Ω)
NJT8319UNMR			N-type(50Ω)	Power Supplied from MS Connector	RS-232C M&C
NJT8319UFMR			F-type(75Ω)
NJT8319UNMRA			N-type(50Ω)	Power Supplied by AC/DC PSU PSU Page Link
NJT8319UFMRA			F-type(75Ω)

技術指標：

Items	Parameters
RF Output Interface	Waveguide, WR75 (with Groove)
IF Input Interfance	Coax. Connector, N-type Female (50 Ω)
	Coax. Connector, F-type Female (75 Ω)
P1dB Output Power (@ 1dB G.C.P.)	+42 dBm min. over temperature
ACPR	-28 dBc max. @ Pout = +41 dBm
Linear Gain	68 dB nom., 62 dB min.
Input Power Voltage Requirement	+48 VDC (+36 to +60 VDC) [DC Power Products]
	90 to 264 VAC [AC Power Products]
Power Consumption @ P1dB	160 W typ., 180 W max.
Operating Temperature Range	Operating Guarantee Range: -40 to +75 ℃
	Performance Guarantee Temperature Range: -40 to +55 ℃
Waterproof / Dustproof (IP-code)	IP67
Weight	2.4 kg
Dimension (w/o Interfaces & Screws)	(L) 180 x (W) 130 x (H) 80 mm
