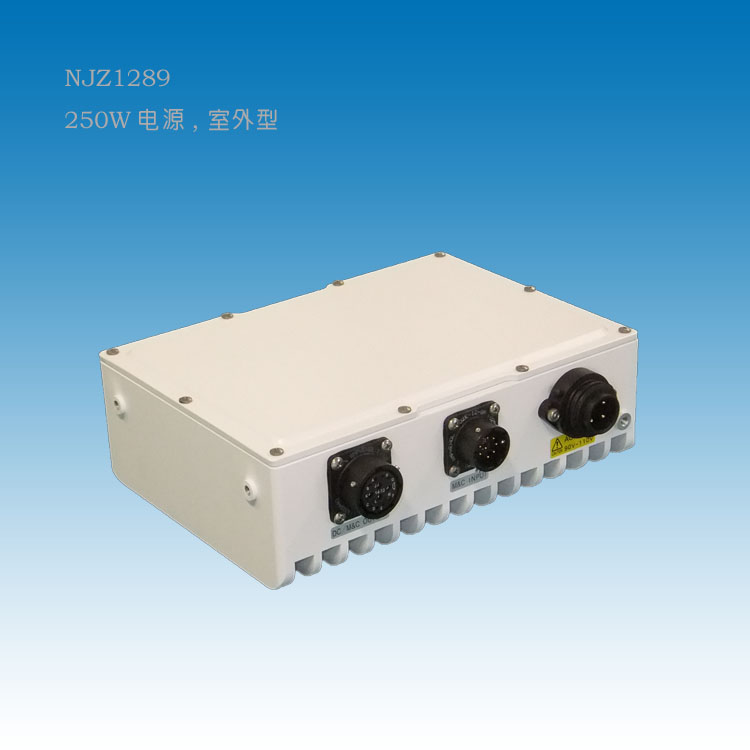

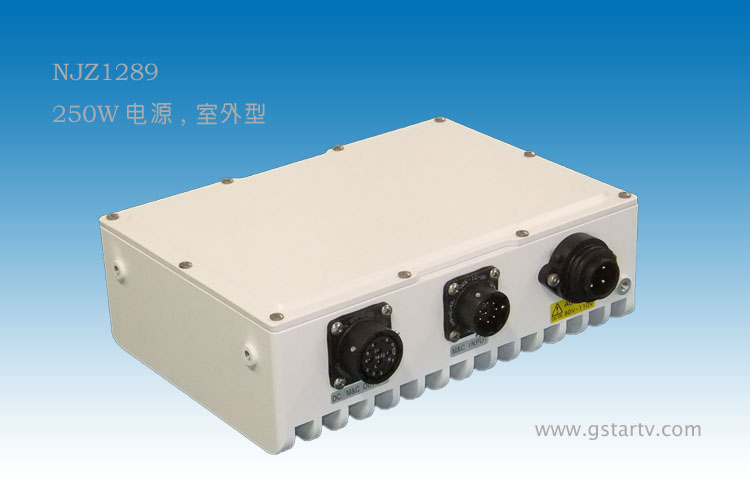

NJZ1289 250W, 室外型BUC功放電源 NJZ1289 250W PSU, Outdoor type
- 產品品牌 JRC
- 產品型號 NJZ1289
- 產品描述
NJZ1289 250W,UBC功放室外電源 PSU, Outdoor BUC type輸出直流電量: 250 W max.適用於NJT8319series → ...
產品名稱：室外型BUC功放電源
產品型號：NJZ1289 250W,
產品描述：NJZ1289 250W,UBC功放室外電源 PSU, Outdoor BUC type輸出直流電量: 250 W max.適用於NJT8319series →
NJT8370series →係列放大器...
產品特點Features：

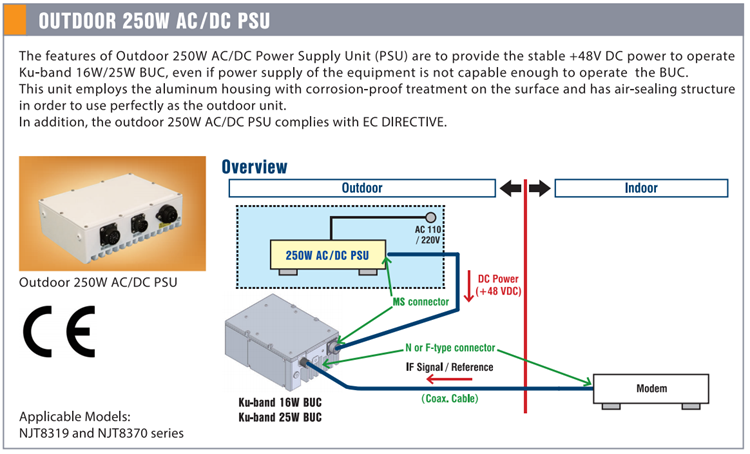

交流/直流電源規格概述 Specifications Overview
輸入交流電源電壓: 100 ~ 240 VAC Input AC Power Voltage: 100 to 240 VAC
輸出直流電源電壓: +48 VDC Output DC Power Voltage: +48 VDC
輸出直流電量: 250 W max. Output DC Power Capacity: 250 W max.
其他Others
配備功率因數矯正（PFC） Power Factor Correction (PFC) Equipped
對流空氣冷卻 Convection Air Cooling
符合RoHS標準 RoHS Compliance
產品概述：
技術參數
| Items | Parameters | ||
| Input AC Power Interface | C016 20C003 200 12 / Amphenol | ||
| Output DC Power Interface | PT02E-14-12S(025) / Amphenol | ||
| Input AC Power Voltage Range | Specified Value: 100 to 240 VAC | ||
| Maximum Rated Value: 90 to 264 VAC | |||
| Input AC Power Frequency | 50 / 60 Hz | ||
| Input AC Power Current | 3.6 A max. | ||
| Output DC Power Voltage | +48 V nom. | ||
| Output DC Power Capacity | 250 W max. | ||
| Operating Temperature Range | -40 to +55 ℃ | ||
| Waterproof / Dustproof (IP-code) | IP67 | ||
| Weight | 1.6 kg | ||
| Dimensions | (L) 186 x (W) 133 x (H) 60 mm (w/o Interfaces & Screws) | ||
